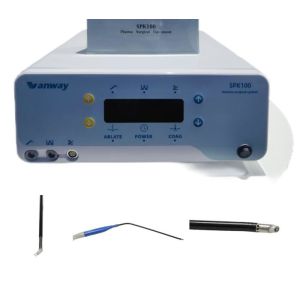

Coblation Plasma Surgery System Application:
Widely used for all kinds of surgery of the knee joint, shoulder joint, hip joint, small
joint(wrist, elbow, ankle). It can do the resection, relaxation, angioplasty, debridement
and ablation for the tissue of meniscus, cartilage, anadesma,synovium, tendon,
glenoid lip.
Specification:
| Input Volt | 198-240V 50Hz 100-120V 60Hz Export device could convert automatically per customer requirements |
| Output Power | Ablation and resection: ≤350W Coagulation and hemostasis: ≤100W |
| Working Frequency | 100 KHz ± 10% |
| Dimension | 409*460*140mm (L*W*H) |
| Working Mode | Ablation and resection: level 0-9 Coagulation: level 0-9 |
| Weight | 7.0kg |
Plasma Surgery Advantage:
Plasma Surgery - Advanced Surgical Method, Minimally-invasive, more safety and less blood loss.
Reduced tissue thermal damage with low temperature. Reduced patient pain with fast recovery. Shorten hospital stay time.
Functions:
Provides two ablation modes and one coagulation mode.
Provides automatic identification of probe, footswitch connection status, and supports power output
settings with default level according to the different probe design.
Hardware protection circuit design - Stop energy output when detecting blade met short circuit.
The online impedance monitoring detection technology reducing the risk of thermal damage.
Probe Characteristics
I. Using the low temperature plasma technology, the controlled plasma field allows for precise removal of soft tissue with minimal thermal damage(100-200um) evident in untargeted cartilage tissue. Using the rare and precise metal materials and nano super slippery ultrathin insulating layer, no adhesion to the tissue.
II. Bipolar structure design, reducing the injury to the peripheral tissue, improve the
surgery safety.
II. New design of the probe working tip, probe structure is exquisite, fully meet the needs
of clinical use.
IV. Integrated cable design, simple operation to prevent cross contamination.
V. The gas produced in the surgery process can overflow from the needle puncture,
maintain clear vision.
VI. Local anesthesia operation,convenient operation,safety, minimally invasive, good
curative effect, quick recovery.
